20–110mm PPR Pipe Extrusion Machine with PLC+Touch Screen Control and Automatic Cutting System

Place of Origin : ZHANGJIAGANG

Productname : PPR Pipe Extrusion Line

Price : Negotiable（USD EUR）

Pipelengthcutting : Automatic cutting system

Brand Name : LB

Model Number : LB-63

Payment Terms : L/C,T/T

Extrusion Speed : 2-15m/min

Machinedimensions : Approx. 10m x 1.5m x 2m

Automatic : Full Automatic

Supply Ability : 15 SETS PER MONTH

Screw And Barrel : Single screw

Totalpower : 30kW - 100kW

Cooling Method : Water cooling tank

Pipediameterrange : 16mm - 110mm

MOQ : 1 SET

Control : PLC+Touch Screen

Machinelength : 10m - 15m

Packing Method : Wooden and film packages

Delivery Time : 45 WOKING DAYS

Certification : CE/ISO

Packaging Details : NORMAL PACKAGE

Contact Now

PPR Pipe Extrusion Machine 20–110mm For Pressure Water Pipes

This specialized PPR pipe making machine is designed for manufacturing pipes used in plumbing and floor heating systems, utilizing advanced co-extrusion technology for superior product quality.

Co-Extrusion Process

Co-extrusion involves sending two or more molten raw materials through a single die to produce multi-layer pipes with various colors or wall thicknesses. This process combines multiple plastics to create materials with distinct properties, opening new frontiers in material engineering and addressing complex manufacturing needs. Co-extrusion also reduces costs by incorporating recycled and reground scrap within virgin material for applications like handrails, fences, tubing, structural components, and air-blown food containers.

Complete Extrusion Line Components
  • Single screw extruder
  • Co-extruder: For manufacturing marking lines on pipes or creating multi-layer pipes
  • Die head
  • Vacuum tank: Designed with single or double vacuum chambers based on diameter requirements
  • Cooling tank: Configured with one, two, or three tanks depending on diameter
  • Haul-offs: Available in double, three, four, six, eight, ten, or twelve haul-offs configurations based on diameter
  • Cutter: Options include no-scraps cutter or planetary cutter designs
  • Coiler/Tipping chute
Specifications
Model Pipe Diameter (mm) Extruder Extruder Power (kw) Capacity (kg/hr)
LB-63 16-63 SJ65/33 55AC 150
LB-110 20-110 SJ75/33 75AC 180
Product Images
20–110mm PPR Pipe Extrusion Machine with PLC+Touch Screen Control and Automatic Cutting System

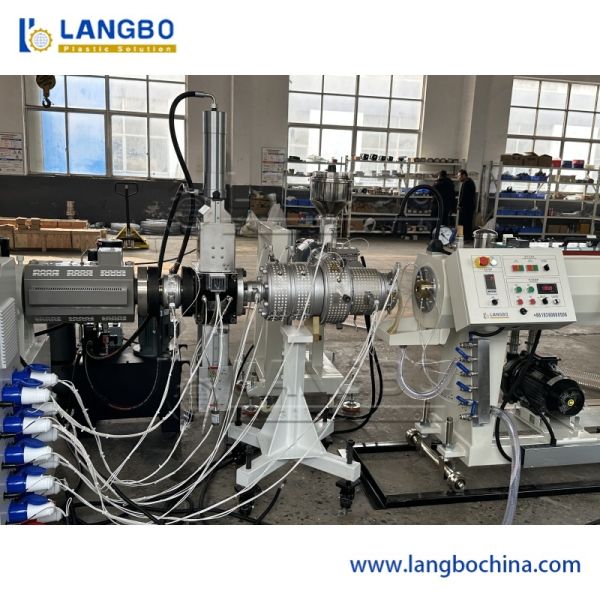

Front view showing complete machine setup
20–110mm PPR Pipe Extrusion Machine with PLC+Touch Screen Control and Automatic Cutting System
Control panel and extruder section
20–110mm PPR Pipe Extrusion Machine with PLC+Touch Screen Control and Automatic Cutting System
Vacuum tank and cooling system
20–110mm PPR Pipe Extrusion Machine with PLC+Touch Screen Control and Automatic Cutting System

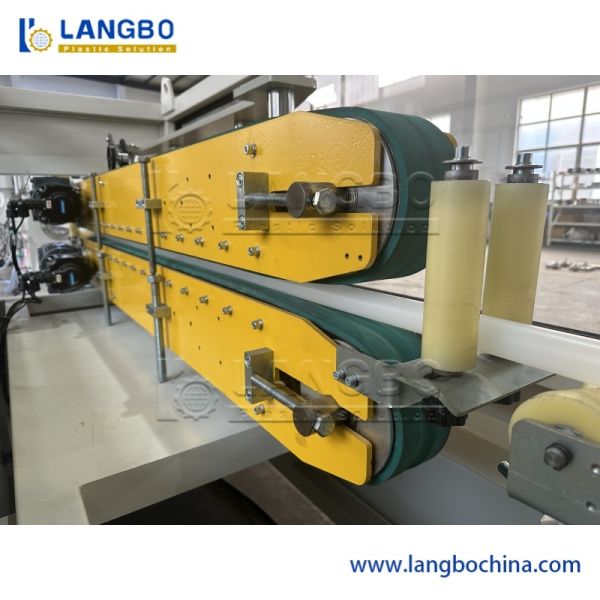

Haul-off and cutter mechanism
20–110mm PPR Pipe Extrusion Machine with PLC+Touch Screen Control and Automatic Cutting System
Coiler and finished product handling
