PPR Pipe Production Line with Automatic Meter Counting and Smooth Inner Surface Finish for 20mm - 110mm Pipe Diameter Range

Pipediameterrange : 20mm - 110mm

Model Number : LB-63

Production Speed : 12m/min; 20m/min; 28m/min

Payment Terms : L/C,T/T

Packing Method : Wooden and film packages

Price : Negotiable（USD EUR）

Weight : 4000kg

Supply Ability : 15 SETS PER MONTH

Extruder Model : 6533

Brand Name : LB

Extruderscrewdiameter : 45mm - 65mm

Output : 120kg/h

MOQ : 1 SET

Delivery Time : 45 WOKING DAYS

Screw And Barrel : Single screw

Packaging Details : NORMAL PACKAGE

Coolingmethod : Water cooling tank

Certification : CE/ISO

Cuttingmachine : Automatic cutting machine

Place of Origin : ZHANGJIAGANG

Contact Now

PPR Pipe Production Line With Automatic Meter Counting For Drinking Water Pipelines

Product Overview

This advanced PPR pipe production line features automatic meter counting and delivers smooth inner surface finishes, specifically designed for drinking water pipeline applications.

Extrusion Process Technology

Multi-layer pipes are manufactured using sophisticated co-extrusion pipe line technology. This specialized process reduces raw material costs while creating pipes with enhanced functional characteristics.

Recycled materials can be utilized as the middle layer in PE thick wall pipes for cost optimization
For hot water supply applications, the production line incorporates PP-R layers with additional structural layers including glass fiber for superior performance

Complete Production Line Components

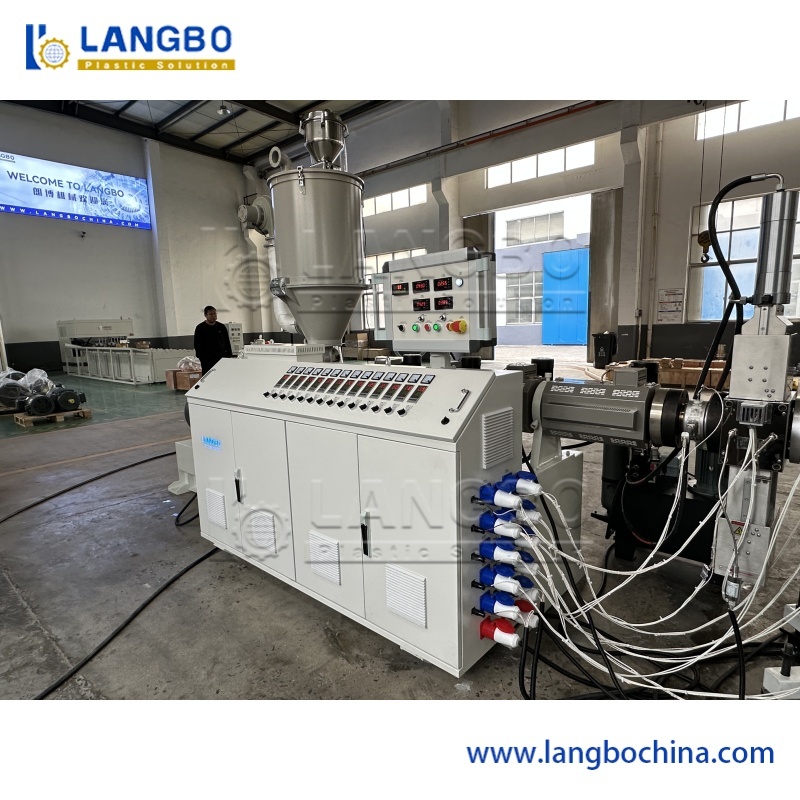

Single screw extruder
Co-extruder: For manufacturing marking lines on pipes or creating multi-layer pipes
Die head

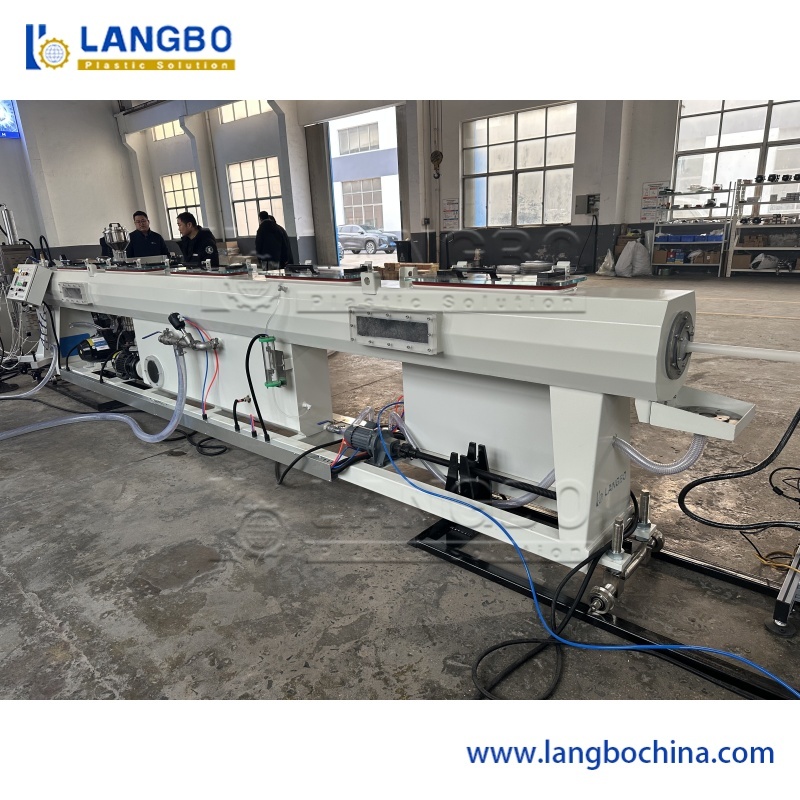

Vacuum tank: Designed with single or double vacuum chambers based on diameter requirements
Cooling tank: Configured with one, two, or three tanks depending on diameter

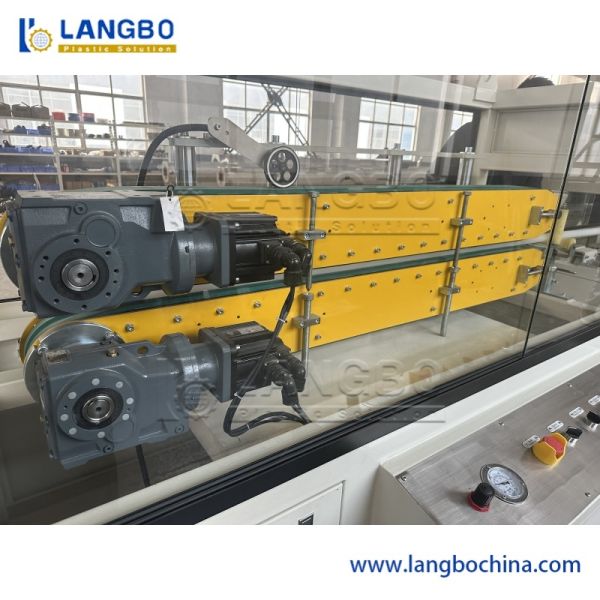

Haul-offs: Available in double, three, four, six, eight, ten, or twelve haul-offs configurations based on diameter
Cutter: Options include no-scraps cutter or planetary cutter designs
Coiler/Tipping chute

Technical Specifications

Model	Pipe Diameter (mm)	Extruder	Extruder Power (kw)	Capacity (kg/hr)
LB-63	16-63	SJ65/33	55AC	150
LB-110	20-110	SJ75/33	75AC	180

Product Images

PPR Pipe Production Line with Automatic Meter Counting and Smooth Inner Surface Finish for 20mm - 110mm Pipe Diameter Range
