High Stability PPR Pipe Extrusion Line For 16-110MM Pipe Diameter With Multi Layer Co-Extrusion And 30KW Power

Model Number : LB-65/33

Pipe Diameter : 16-110MM

Payment Terms : L/C,T/T

Pipe Size : 20-110mm; 3 layer

Productname : PPR Pipe Extrusion Line

MOQ : 1 SET

Delivery Time : 45 WOKING DAYS

Extruder Model : SJ65/33

Length : 20mx2.5mx2.2m

Price : Negotiable（USD EUR）

Production Speed : 12m/min; 20m/min; 28m/min

Output : 120kg/h

Supply Ability : 15 SETS PER MONTH

Vacuum Tank : 8 meters long

Power : 30KW

Brand Name : LB

Cooling method : Water cooling tank

Packaging Details : NORMAL PACKAGE

Extruder Design : single screw extruder

Motor : Original

Certification : CE/ISO

Voltage : 220V/380V/415V

Place of Origin : ZHANGJIAGANG

Material : Polypropylene Random Copolymer (PPR)

Contact Now

High Stability PPR Pipe Extrusion Line
Advanced extrusion system for manufacturing multi-layer plastic pipes suitable for water supply and electrical conduit applications. Features innovative screw technology for superior stability and performance.
Extrusion Process
Multi-layer pipes are produced using co-extrusion technology, optimizing raw material usage while creating pipes with enhanced functional characteristics. For cost-effective production, recycled materials can be incorporated as the middle layer in PE thick wall pipes. For hot water supply applications, the production line enables the addition of structural layers such as glass fiber reinforcement, providing superior performance for demanding applications.
Complete Extrusion Line Components
  • Single screw extruder
  • Co-extruder: For creating marking lines or multi-layer pipe structures
  • Die head
  • Vacuum tank: Available in single or double chamber configurations based on diameter requirements

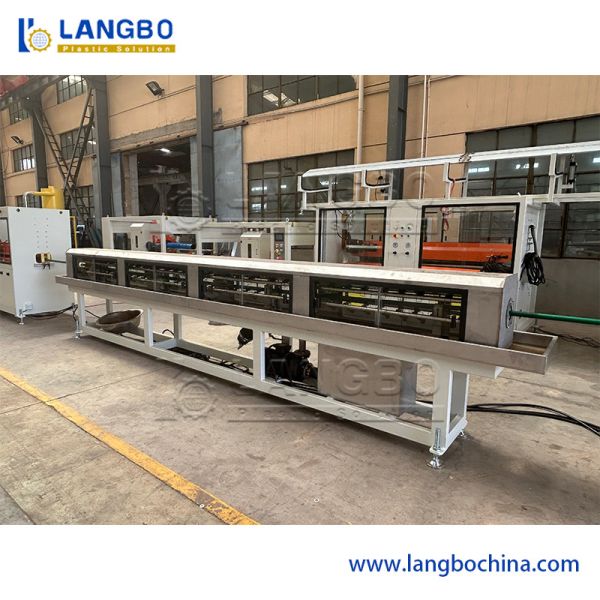

  • Cooling tank: Configurable with one, two, or three tanks depending on pipe diameter
  • Haul-offs: Multiple configurations available including double, three, four, six, eight, ten, or twelve haul-offs

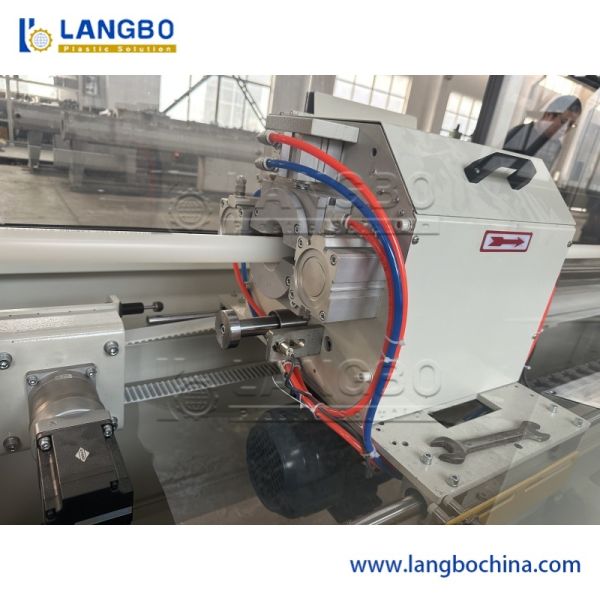

  • Cutter: Options include no-scraps cutter or planetary cutter designs
  • Coiler/Tipping chute
Technical Specifications
Model Pipe Diameter (mm) Extruder Extruder Power (kw) Capacity (kg/hr)
LB-63 16-63 SJ65/33 55AC 150
LB-110 20-110 SJ75/33 75AC 180
