Supermaket PVC Plastic Price Tag Profile Making Machine

EXTRUDER'S POWER : 55KW

Screw and barrel : Conical twin screw extruder

PIPE DIAMETER : 75-250

Screw diameter : 65/132

Brand Name : LB

Model Number : LB-65/28

Certification : CE ISO9001

Place of Origin : ZHANGJIAGANG, JIANGSU

MOQ : 1 SET

Price : USD EUR

Payment Terms : L/C,T/T

Supply Ability : 15 SETS PER MONTH

Delivery Time : 30 WORKING DAYS

Packaging Details : NORMAL PACKAGE

Voltage : 380V 50Hz or customized

Inverter : ABB

Motor : Brand

APPLICATION : WATER SUPPLY PIPE

Color : Customizable

Automatic grade : Full-automatically

Warranty : 18 months

RAW MATERIAL : PVC POWDER & ADDITIVES

Screw design : Twin screw and barrel

Contactor : OR SCHNIDER

Raw material : PVC Powder

Pipe Application : Water Supply

COLOUR : CUSTOMIZED

PIPE UMBERS : DOUBLE PIPE

Packages : Film and boxes

After-sales service provided : Engineers available to service machinery overseas,Field installation,commissioning and training,Online support,Video technical support

Delivery time : 60 days

Payment : T/T, L/C, Western Union

Contact Now

Supermaket PVC Plastic Price Tag Profile Making Machine

Short description
PVC Price Tag Holder Extrusion Line is an extrusion system designed for producing PVC price tag holders, shelf label strips, and other plastic profiles. The line uses a single screw extruder and PVC granules as raw material, forming continuous profiles with fixed cross-section structures for retail display and product identification applications.

Processing Process

PVC granules are fed into the single screw extruder, where the material is plasticized and mixed through controlled heating and screw conveying. The molten PVC passes through a customized profile die for extrusion forming, followed by vacuum calibration and cooling to maintain the required profile dimensions. The haul-off unit provides continuous movement, and the cutting unit completes fixed-length cutting.

Processing flow:
PVC Granules → Single Screw Extrusion → Profile Die Forming → Vacuum Calibration & Cooling → Haul-off → Cutting → Stacker

Application

PVC Price Tag Holder Extrusion Line produces profiles mainly used for:

Supermarket shelf price labeling systems
Retail product display racks
Warehouse and logistics shelf identification
Commercial display cabinets and product classification labels

The extrusion line can be configured according to profile drawings, dimensions, and color requirements, supporting customized production for different retail identification systems.

Specifications

extruder model	SJ45.SJ55
vacuum forming table length	2-6 meters
haul off speed(m/minute)	0-20 meters
cutting motor	0.75KW
vacuum pump(kw)	2.2-5.5
water pump(kw)	0.37

Delivery information:

1. Delivery: 30 days after ur order

2. Warrenty: 12 months

3. Payment: T/T 30% in advance, T/T 70% before delivery.

4. Packing: Standard export wooden case

Our Service

1. One year guarantee for whole machine.

2. 24 hours technical support.

3. Our engineers can provide installation & commission service overseas.

4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.

5. We also can provide training service which help operators handle the machine well.

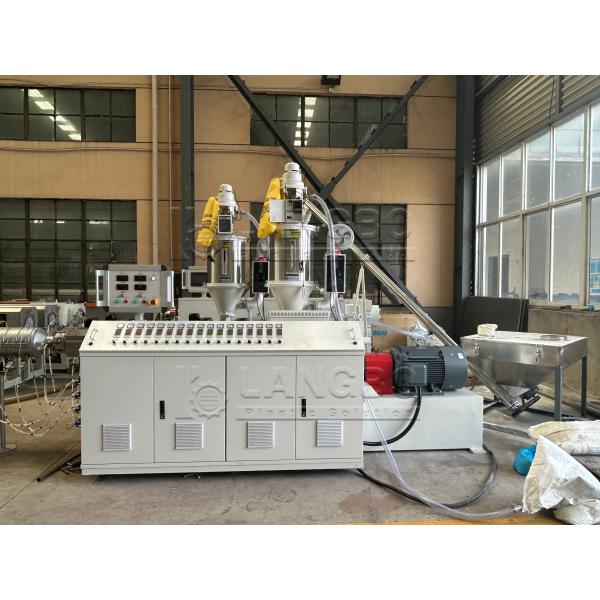

Single screw extruder machine:The extruder are crafted with top brand components to ensure production stability, efficiency and machine durability. Our extruder allocate international standard single screw and barrel. The screw has strong rigidity ensuring long service life and distinguished plasticizing effect.

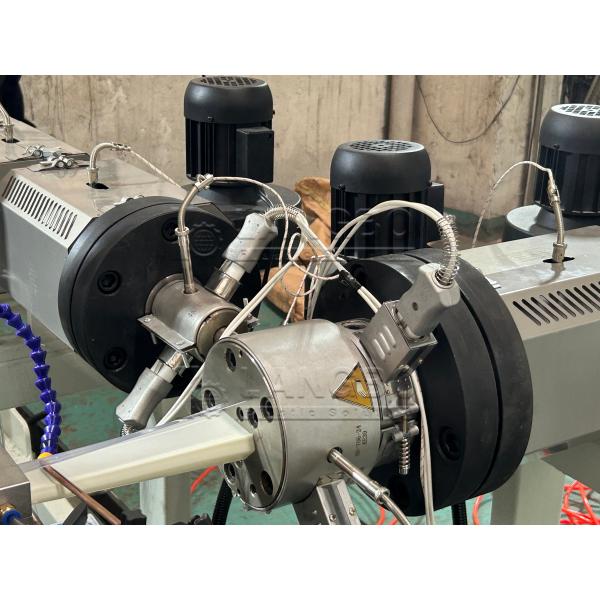

Mould:The mould has spacious flow channel design to guarantee high extrusion capacity and good melting effect.

It is made and inspected by the experienced manufacturer. The optimized temperature control and flow channel design ensures precise melt temperature control.

Calibration table:The calibration table has stable steel frame and the whole body material is SUS 304 stainless steel. We have multi-dimension position adjustment system.

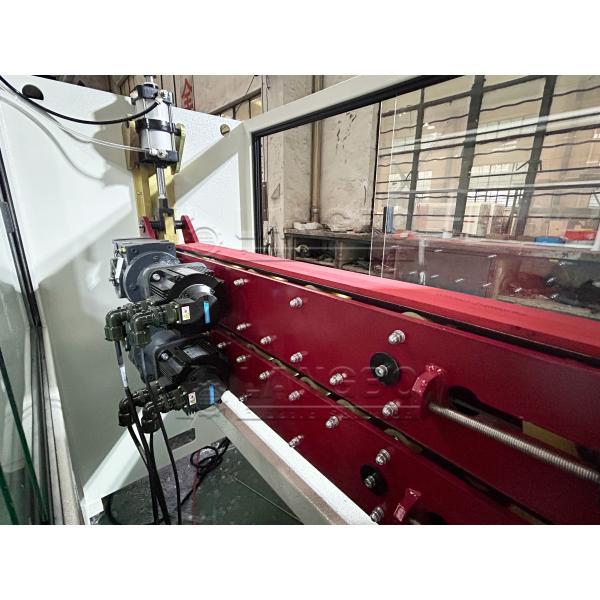

Haul-off Unit:The force distribution along each belts has sufficient hauling force. We offer good-quality bellt for the haul-off machine. The pneumatic pressure is conducive to the easy adjustment and product protection.

Cutter unit:Two kinds of cutting way including swarfless and saw cutting are available for customization.
