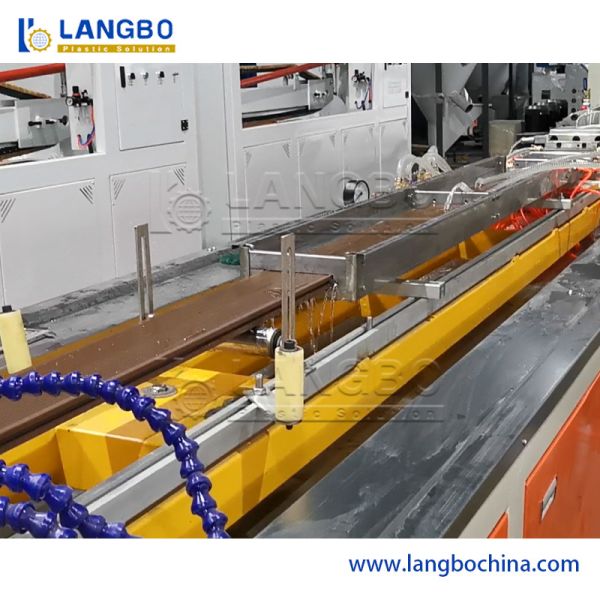

WPC Decking Machine For Garden Flooring And Outdoor Construction Materials
WPC Decking Machine With Wear-Resistant Composite Structure For Continuous Extrusion
Conical Twin Screw Extruder
Designed for PVC profile applications with flexibility in material choices, high performance, and long durability.
- High flexibility in raw material combinations
- Gentle and homogeneous plastification
- Barrel with air cooling system
- AC motors for low energy consumption
- Control panel with color touch screen
Energy Saving System (LESS)
Lima Energy Saving System provides significant vacuum energy savings.
- Vacuum energy savings up to 80%
- Vacuum pumps driven by individual frequency inverters
- Low noise level operation
- Closed circuit water system
Crawler Track Haul-off Units
Flexible solutions with independent tracks and continuous speed adjustment.
- Flexibility in pad dimensions
- Two independent tracks with gearboxes
- Speed adjustment by inverter

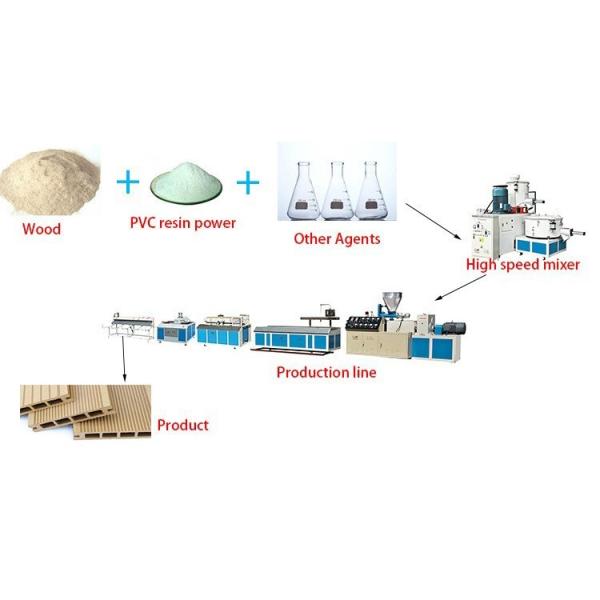

Complete Extrusion Line Components
Conical Twin Screw Extruder
Special screw and barrel design for perfect mixing and homogeneous output with motors for minimal electricity consumption.
Mould
Ideal viscosity design with polished contact surfaces to minimize friction losses.
Calibration Table
Stainless steel construction to prevent corrosion with customized design for profile characteristics.
Crawler Track Haul-off
Inverter-controlled speed adjustment synchronized with material output rate.
Saw Cutter
High-efficiency cutting with integrated dust collection system.
Tip-off Unit
Pneumatic cylinder operation.
Production Specifications
| MODEL |
PROFILE SIZE (mm) |
EXTRUDER MODEL |
MOTOR POWER (kw) |
| LB-108 |
108 |
SJZ51/105 |
18.5 AC |
| LB-180 |
180 |
SJZ55/110 |
22 AC |
| LB-300 |
300 |
SJZ65/132 |
37 AC |
| LB-600 |
600 |
SJZ80/156 |
55 AC |
| LB-800 |
800 |
SJZ80/156 |
55 AC |
| LB-1240 |
1240 |
SJZ92/188 |
110 D |
